Android使用HttpClient实现下载,并监控进度

Android程序开发中使用网络上传下载是必不可少的,前不久使用Apache Httpclient组件进行图片上传下载,并监控进度等功能的了解与实现,并解决了缩放图片时出现SkImageDecoder::Factory returned null错误。本文是在httpcore-4.3.jar,httpmime-4.3.4.jar基础上实现,文章末尾提供的Demo下载中包含了它们。关于上传,请移步Android使用HttpClient实现文件上传到PHP服务器,并监控进度。好记性不如烂笔头,方便以后查阅,不当之处,还请指正。

监控进度实现

关于HttpClient的资料,可去其官方查阅。本例简单的使用它进行图片下载,如想实现批量下载图片,请参见Android异步批量下载图片并缓存

首先定义监听器接口,如下所示:

/**
 * 进度监听器接口
 */
public interface ProgressListener {
    public void transferred(long transferedBytes);
}

然后自定义一个CountingInputStream类继承于FilterInputStream,重写其中的关键方法,实现进度监听的功能,如下所示:

/**
 * 重写FilterInputStream,实现进度监听的功能
 *
 * @author Cow
 *
 */
public class CountingInputStream extends FilterInputStream {

    private final ProgressListener listener;
    private long transferred;

    protected CountingInputStream(final InputStream in,
            final ProgressListener listener) {
        super(in);
        this.listener = listener;
        this.transferred = 0;
    }

    @Override
    public int read() throws IOException {
        int read = in.read();
        readCount(read);
        return read;
    }

    @Override
    public int read(byte[] buffer) throws IOException {
        int read = in.read(buffer);
        readCount(read);
        return read;
    }

    @Override
    public int read(byte[] buffer, int byteOffset, int byteCount)
            throws IOException {
        int read = in.read(buffer, byteOffset, byteCount);
        readCount(read);
        return read;
    }

    @Override
    public long skip(long byteCount) throws IOException {
        long skip = in.skip(byteCount);
        readCount(skip);
        return skip;
    }

    private void readCount(long read) {
        if (read > 0) {
            this.transferred += read;
            this.listener.transferred(this.transferred);
        }
    }
}

最后就是使用上述实现的类和Httpclient进行下载并显示进度的功能,非常简单,代码如下,使用AsyncTask异步下载。

public class FileDownLoadAsyncTask extends
        AsyncTask<ImageView, Integer, Bitmap> {

    // 图片下载地址
    private String url = "http://img0.bdstatic.com/img/image/shouye/leimu/mingxing.jpg";
    private Context context;
    private ProgressDialog pd;
    private ImageView image;
    private int width = 150;
    private int height = 150;

    public FileDownLoadAsyncTask(Context context) {
        this.context = context;
    }

    @Override
    protected void onPreExecute() {
        pd = new ProgressDialog(context);
        pd.setProgressStyle(ProgressDialog.STYLE_HORIZONTAL);
        pd.setMessage("下载中....");
        pd.setCancelable(false);
        pd.show();
    }

    /**
     * 下载图片,并按指定高度和宽度压缩
     */
    @Override
    protected Bitmap doInBackground(ImageView... params) {
        this.image = params[0];
        Bitmap bitmap = null;
        HttpClient httpClient = new DefaultHttpClient();
        try {
            httpClient.getParams().setParameter(
                    CoreProtocolPNames.PROTOCOL_VERSION, HttpVersion.HTTP_1_1);
            HttpGet httpGet = new HttpGet(url);
            HttpResponse httpResponse = httpClient.execute(httpGet);
            if (httpResponse.getStatusLine().getStatusCode() == HttpStatus.SC_OK) {
                HttpEntity entity = httpResponse.getEntity();
                final long size = entity.getContentLength();
                CountingInputStream cis = new CountingInputStream(
                        entity.getContent(), new ProgressListener() {

                            @Override
                            public void transferred(long transferedBytes) {
                                Log.i("FileDownLoadAsyncTask", "总字节数:" + size
                                        + " 已下载字节数:" + transferedBytes);
                                publishProgress((int) (100 * transferedBytes / size));
                            }
                        });
                // 需将Inputstream转化为byte数组,以备decodeByteArray用
                // 如直接使用decodeStream会将stream破坏,然后第二次decodeStream时,会出现SkImageDecoder::Factory returned null错误
                // 我试过将获得的Inputstream转化为BufferedInputStream,然后使用mark、reset方法,但是我试了试没成功,不知道为啥,还请成功的各位告知
                byte[] byteIn = toByteArray(cis, (int) size);
                BitmapFactory.Options bmpFactoryOptions = new BitmapFactory.Options();
                // 第一次decode时,需设置inJustDecodeBounds属性为true,这样系统就会只读取下载图片的属性而不分配空间,并将属性存储在Options中
                bmpFactoryOptions.inJustDecodeBounds = true;
                // 第一次decode,获取图片高宽度等属性
                BitmapFactory.decodeByteArray(byteIn, 0, byteIn.length,
                        bmpFactoryOptions);
                // 根据显示控件大小获取压缩比率,有效避免OOM
                int heightRatio = (int) Math.ceil(bmpFactoryOptions.outHeight
                        / height);
                int widthRatio = (int) Math.ceil(bmpFactoryOptions.outWidth
                        / width);
                if (heightRatio > 1 && widthRatio > 1) {
                    bmpFactoryOptions.inSampleSize = heightRatio > widthRatio ? heightRatio
                            : widthRatio;
                }
                // 第二次decode时,需设置inJustDecodeBounds属性为fasle,系统才会根据传入的BitmapFactory.Options真正的压缩图片并返回
                bmpFactoryOptions.inJustDecodeBounds = false;
                bitmap = BitmapFactory.decodeByteArray(byteIn, 0,
                        byteIn.length, bmpFactoryOptions);
            }
        } catch (ClientProtocolException e) {
            e.printStackTrace();
        } catch (ConnectTimeoutException e) {
            e.printStackTrace();
        } catch (Exception e) {
            e.printStackTrace();
        } finally {
            if (httpClient != null && httpClient.getConnectionManager() != null) {
                httpClient.getConnectionManager().shutdown();
            }
        }
        return bitmap;
    }

    @Override
    protected void onProgressUpdate(Integer... progress) {
        pd.setProgress((int) (progress[0]));
    }

    @Override
    protected void onPostExecute(Bitmap bm) {
        pd.dismiss();
        if (bm != null) {
            image.setImageBitmap(bm);
        } else {
            Toast.makeText(context, "图片下载失败", Toast.LENGTH_SHORT).show();
        }
    }

    /**
     * InputStream转化为Byte数组
     *
     * @param instream
     * @param contentLength
     * @return
     * @throws IOException
     */
    public byte[] toByteArray(InputStream instream, int contentLength)
            throws IOException {
        if (instream == null) {
            return null;
        }
        try {
            if (contentLength < 0) {
                contentLength = 4096;
            }
            final ByteArrayBuffer buffer = new ByteArrayBuffer(contentLength);
            final byte[] tmp = new byte[4096];
            int l;
            while ((l = instream.read(tmp)) != -1) {
                buffer.append(tmp, 0, l);
            }
            return buffer.toByteArray();
        } finally {
            instream.close();
        }
    }

}

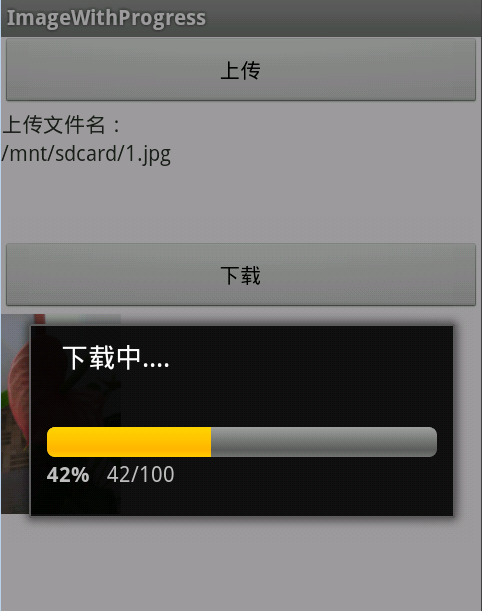

最后的最后,下载效果图如下:

dowmload

有疑问或者觉得不对的地方还请指正,谢谢。

GitHub源码下载:DEMO
